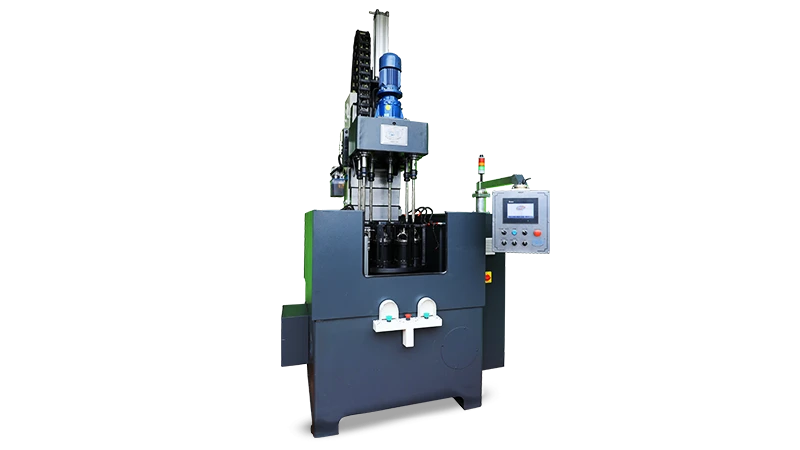

3 Spindle Single Pass Honing Machine with NC Rotary Table – AB300 NC F-Series
Vertical Honing Machine for Sale - Get Latest Price of Power Stroked Vertical Honing Machine along with Honing Tools, Honing Fixtures and all spares under one roof. Honing Machine designed to eliminate all the manual controls which are considered to be a trend setter in Honing Industry. Abhi with its over all expertise for more than 24 years has made a revolutionary product of AB300 NC F-SERIES Model Honing Machine.
Abhi with its over all expertise for more than 24 years has made a revolutionary product of AB300 NC F-SERIES Model Honing Machine. This Honing Machine is designed and Engineered to enhance the operator productivity. These type of Vertical Honing Machines are suited for quick changeover for medium to High Volume of Production without any manual controls which is the latest technology.
Technical Specifications
| Spindle | Pb25 |
| Spindle motor | |
| No. Of Spindles | 3 |
| Rotary Indexing Table | |
| No of Indexing Stations | 4 |
| Servo Controlled Z – Axis Stroke with automatic Counter balancing pneumatic cylinders | |
| Special floating Fixture | |
| Lubrication System | Auto Lubrication |
| Machine Controller | PLC [Absolute encoder] |
| Max. Weight [Approx.] | 3000kg |
| Floor SPACE [Approx.] | 2400 X 3800 X 2850mm [LxBxH] (Including Filtration System) |
Special Features
- a. High Production rate
- b. Improved Bore Quality
- c. Shorter Cycle Time
- d. Predictable, consistent results
- e. Less frequent Part Inspection
- f. Reduced labor cost through Automation
- g. Lower cost per hole as a result of better Tool life
Additional Features
- a. Vertical Compact Design
- b. Easily Accessible Work Area from the Front Side
- c. ABHI’s Plated Single Stroke Honing Tools for Precise Hole size, Geometry and surface finish
Standard Equipment Provided with Machine
| a. Indexing Rotary Table with 4 stations | |
| b. PLC Controlled Automatic Lubrication for LM guides & Ball screws | |
| c. High Precision Spindle for smooth running | |
| d. Inbuilt Adjustable Stroke Limit |
Spindle and Stations arrangement for 3 Spindle and 4 Stations Cycle
| a. Spindle 1 – Brushing | |
| b. Spindle 2 – Rough Tool | |
| c. Spindle 3 – Finish Tool |
Note:
Machine will be with 3 spindles and 4 Stations. Out of 4 Stations 1 will be for loading and unloading of components.
Optional Accessories with additional cost
- a. Custom Specified Honing Tools
- b. Floating Tool Holders
- c. Coolant Filtration System
- d. Special Custom Floating Fixture Package
