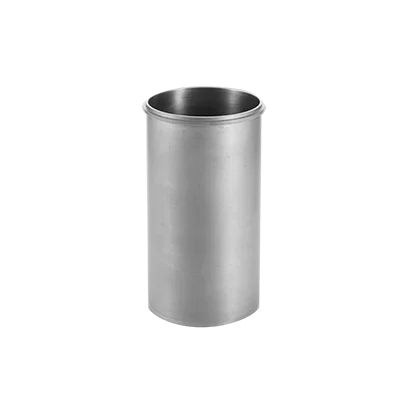

Cylinder - ABH2500
| INPUT | SPECIFICATION |
| Bore Diameter | Ø11.95 / 11.98 mm |
| Length of Bore | 289.56 mm |
| Material | Super 13 Chrome 95 KSI |
| Surface Finish | 0.6 - 1 Rq |
| Weight | 52 Kg |
| OUTPUT | REQUIRED (mm) | ACHIEVED (mm) |
| Bore Diameter | Ø 11.988 / Ø 12.065 | Ø 11.988 / Ø 12.064 |
| Roundness | 0.001 | 0.001 |
| Surface Finish | 0.4 Rq | 0.1 Rq |
| DESCRIPTION | MEASURE | UNIT |
| Cycle Time | 7 | Min |
| Production /1 hour | 8 | Nos |
| Production/Shift/8 hour | 64 | Nos |
Acheivements
- Cylinder - ABH2500
- Bearing Steel Balls Machine - AB608 OG Series
- Piston Machine - AB506 Series
- Sleeve Machine - AB608
- HT & PT Valves Machine - AB608
- Cylinder Housing Machine - ABE10425
- Housing Machine - AB608
- Manifold Machine - AB600
- Body Machine - AB405
- Tube Machine - ABE12045
- Rocker Arms Machine - ABHM1000
- Connecting Rod Machine - ABHM1000
- Gear Machine - ABHM1000
- Jig Bush Machine - ABHM1000
