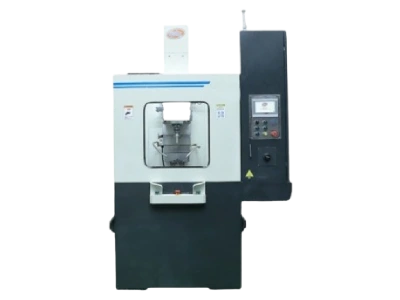

Discover the Single Spindle Vertical Expansion Honing Machine

16 Sep, 2024

The Single Spindle Vertical Expansion Honing Machine is engineered to meet the demanding needs of modern manufacturing known for its precision and reliability, this machine is equipped with advanced technology to refine the internal surfaces of cylindrical parts, ensuring that they meet exact specifications. The up-and-down motion ensures a smooth and consistent honing process. Whether you’re in the business of producing small components or large assemblies, this machine is your go-to solution for achieving superior quality.

Why Choose the Single Spindle Vertical Expansion Honing Machine?

Increased Precision: The machine’s servo-controlled feed system and advanced PLC (Programmable Logic Controller) ensure that every honing operation is executed with the highest level of accuracy. This precision minimizes errors, reduces material waste, and ensures consistent quality across all parts.

Improved Surface Finish: Using abrasive stones, the machine meticulously removes material to create a smooth,flawless surface. This not only enhances the aesthetic appeal of the components but also improves their functional performance, leading to better fit and longer-lasting parts. It also has 0.1-micron accuracy of stone expansion accuracy.

Reduced Production Time: With its high stroker speed of up to 30,000 mm/min and versatile diameter range, the machine can handle a wide variety of part sizes quickly and efficiently. This versatility reduces setup times and increases overall production speed, making it easier to meet tight deadlines.

Key Features of the Single Spindle Vertical Expansion Honing Machine

Flexible Bore Applications: The machine is suitable for both blind bore and through bore applications, with exceptional adaptability to blind bore operations.

Ideal for Batch Production: Perfectly suited for batch production, ensuring high-quality and consistent results.

Servo-Controlled Precision: Rotation, reciprocation, and expansion are all managed by the machine’s advanced servo control system for precise operation.

Low Maintenance and Space-Efficient Operation: Designed for minimal upkeep, the machine requires little maintenance, reducing downtime. It also operates without the need for manual intervention, allowing for efficient, hands-free operation. Additionally, its compact design ensures that it requires less space, making it ideal for facilities with limited room.

Applications: Versatility Across Industries

The Single Spindle Vertical Expansion Honing Machine is highly adaptable and can be used in a range of industries, including:

Industrial Machinery: Enhancing the performance and longevity of machine parts.

Manufacturing: Supporting a variety of custom and standard production processes.

Automotive: It is effective in automotive engines, cylinders, cylinder liner, etc.

Technical Specifications

For a detailed understanding, here are the technical specifications of the Single Spindle Vertical Expansion Honing Machine:

Case History Overview:

Material: FG 260 - This is a type of cast iron commonly used for machining due to its good machinability and strength.

Bore Type: Blind Bore - A bore that does not go all the way through the material; it has a closed end.

Dimensions

Diameter: Ø38.1 (+0.020/+0.035) - The nominal diameter of the bore is 38.1 mm, with a permissible variation of +0.020 mm to +0.035 mm.

Length: 60 mm - The length of the bore is 60 millimetres.

Tolerances and Stock Removal

Stock Removal: 0.040 mm - This is the amount of material to be removed from the rough state to achieve the final dimensions.

Rough Dimensions: Ø38.09 - Ø38.12 - This is the range of the bore diameter after the initial roughing process.

Finish Dimensions: Ø38.12 - Ø38.13 - This is the target range for the final finished bore diameter.

Bore Quality

Size Tolerance: Ø38.120/Ø38.135 - The bore should fall within this range to be considered acceptable.

Achieved Size: Ø38.128 - The actual size achieved, which is within the specified tolerance range.

Cylindricity: 0.01 mm - The bore should have a cylindricity (how much the bore deviates from a perfect cylinder) of no more than 0.01 mm. The achieved cylindricity is 0.008 mm, which meets the requirement.

Surface Finish: 0.635 Ra - The required surface finish of the bore is 0.635 µm (Ra stands for average roughness). The achieved finish is 0.4 µm, which is better than the required specification.

Machine and Tools

Machine Type: ABE10550 - This is the machine used for the honing process, likely a specific model designed for precision work.

Coolant: ABHI HONING OIL (AB 150) - The type of honing oil used to cool and lubricate the honing process.

Production Details

Production Rate: 60 Nos/Hour - The production rate of the process is 60 pieces per hour, indicating the efficiency and speed of the machining process.

Application

Cylinder Housing: The bore is used in a cylinder housing, likely for an engine or similar application, where precise dimensions and surface finish are critical.

Learn More and Schedule a Demo

Ready to take your manufacturing process to the next level? Contact us today to learn more about the Single Spindle Vertical Expansion Honing Machine and how it can benefit your operations. Schedule a demo to see the machine in action and discover how it can help you achieve your production goals.
