Understanding the Honing Process: A Key to Precision Machining

Lapping is a surface finishing process that involves using a loose abrasive slurry or compound between two surfaces to achieve ultra-fine finishes and precise flatness. The process is typically performed on flat surfaces but can also be applied to cylindrical components.

• Preparation: The workpiece is placed between a rotating lap plate and a conditioning ring or another surface.
• Abrasive Slurry Application: A fine abrasive slurry (such as diamond, aluminium oxide, or silicon carbide) is introduced to the interface.
• Relative Motion: The workpiece moves in a controlled manner while the lap plate rotates, distributing the abrasive particles evenly.
• Material Removal: The abrasive particles gradually wear down high points on the surface, improving flatness and smoothness.
• Final Inspection: The surface is checked for desired finish and dimensional accuracy.

• High-precision flat components such as optical lenses, semiconductor wafers, and gauge blocks.
• Sealing surfaces in valves and mechanical seals.
• Automotive and aerospace industries for precision gears and engine components.
• Bearing and piston rings for achieving extremely fine finishes.

Grinding is a material removal process that uses an abrasive wheel to cut and smooth surfaces. It is widely used for shaping, finishing, and achieving tight tolerances in both cylindrical and flat workpieces.

• Workpiece Setup: The component is securely clamped or held in a fixture.
• Abrasive Wheel Engagement: A rotating grinding wheel contacts the workpiece surface.
• Material Removal: High-speed rotation of the abrasive wheel removes excess material.
• Cooling and Lubrication: Coolants are often used to prevent overheating and maintain surface integrity.
• Final Inspection: The workpiece is measured to ensure it meets dimensional and finish requirements.

• Finishing of hardened metal components like gears and shafts.
• Surface grinding of flat components in tool and die making.
• High-precision cylindrical grinding for bearing and spindle components.
• Removal of excess material in mass production environments.

Burnishing is a finishing process that improves surface quality and hardness by using a rolling or pressing tool to deform the material plastically without removing material. The process enhances surface finish and increases wear resistance by creating a smooth and hardened surface.

• Workpiece Setup: The component is securely positioned in a machine or fixture.
• Burnishing Tool Engagement: A hardened roller or ball tool is pressed against the surface.
• Plastic Deformation: The pressure causes surface material to be redistributed, smoothing out imperfections.
• Surface Hardening: The process improves surface hardness, reducing wear and increasing fatigue resistance.
• Final Inspection: The component is measured to ensure the desired finish and hardness are achieved.

• Automotive crankshafts and camshafts for enhanced durability.
• Hydraulic and pneumatic cylinders for improved sealing surfaces.
• Aerospace landing gear components requiring high wear resistance.
• Medical implants and surgical tools demanding ultra-smooth surfaces.

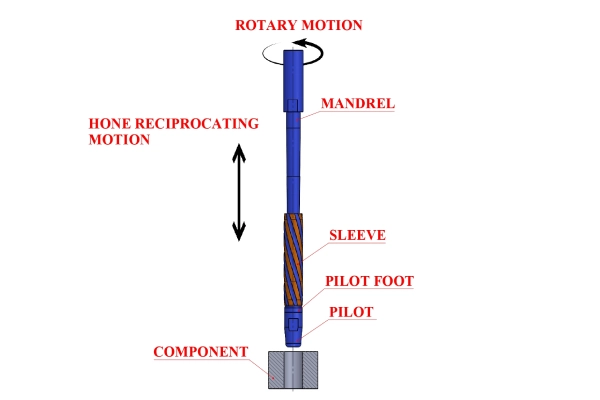

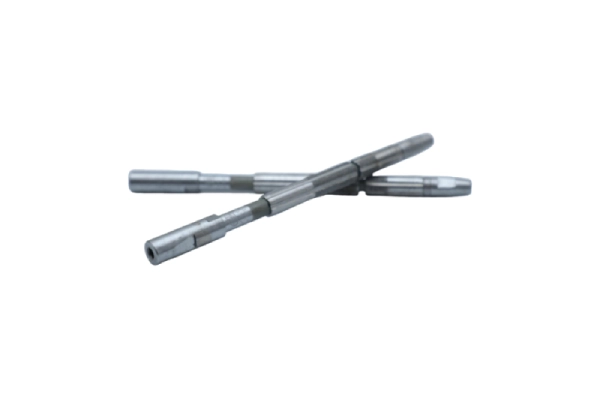

Single-pass honing tools use fixed-diameter super abrasive sleeves instead of expandable stones. These tools are designed for high-precision applications and provide excellent repeatability.

Single – Pass Honing

Applications:

• Aerospace and automotive industries for engine components.
• High-precision hydraulic and pneumatic cylinders.
• Medical and surgical instruments requiring ultra-precise bores.

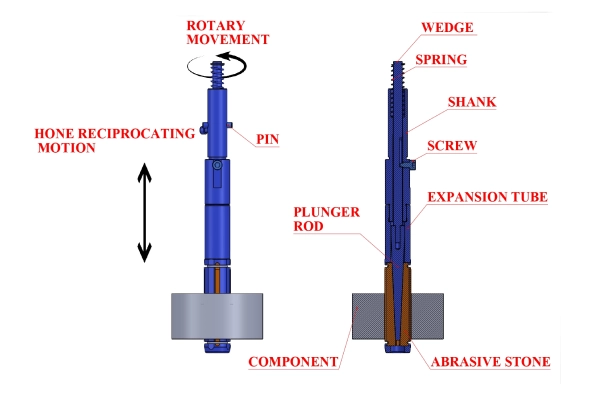

Expandable honing tools feature adjustable abrasive stones that expand and contract to fit different bore sizes. These tools allow gradual stock removal and provide a superior surface finish.

Expansion Honing

Applications:

• General machining and repair work.
• Automotive cylinder blocks and liners.
• Industrial equipment with varied bore sizes.

Diamond and Cubic Boron Nitride (CBN) honing tools use super abrasives to enhance precision and durability. These tools are ideal for machining hard materials and achieving superior surface finishes.

CBN Honing

Diamond Honing

Applications:

• High-hardness alloys and ceramics.
• Aerospace and defence components.
• High-wear industrial parts requiring long tool life.

Plateau honing tools are designed to create a cross-hatched surface finish, which improves oil retention and reduces friction. This type of honing tool is commonly used in applications requiring lubrication.

Applications:

• Automotive and diesel engine cylinders.
• Hydraulic components needing extended service life.
• Industrial applications requiring controlled lubrication.

Flexible honing brushes, also known as ball hones, are composed of abrasive globules mounted on a flexible shaft. These tools are effective for deburring and finishing small- diameter bores.

Applications:

• Deburring and finishing hydraulic and pneumatic tubes.
• Cleaning and maintaining engine cylinders.
• Small-diameter applications in medical and aerospace industries.

Mandrel honing tools use a series of honing stones mounted on a mandrel. These tools expand outward to engage with the bore walls, ensuring uniform material removal and high accuracy.

Applications:

• Precision honing of gear and bearing bores.
• Improving roundness in industrial components.
• High-precision bore finishing in automotive parts.

Selecting the appropriate honing tool depends on factors such as:

• Material hardness and type.
• Required surface finish and bore accuracy.
• Production volume and precision demands.
• Lubrication and wear resistance needs.

Standard honing fixtures are commonly used for general machining applications. These fixtures securely hold cylindrical or rectangular workpieces, ensuring stability during the honing process.

Applications:

• Automotive and aerospace engine components.
• General manufacturing requiring consistent bore finishing.
• Industrial machinery parts with standard bore dimensions.

Custom honing fixtures are designed to accommodate unique workpiece shapes, sizes, or materials. They provide high-precision alignment and optimal stability for specialized applications.

Applications:

• Complex hydraulic and pneumatic components.
• Medical and surgical instruments with precise bore requirements.
• Aerospace components requiring tight tolerances.

Self-centering honing fixtures automatically adjust to the workpiece, ensuring uniform pressure and alignment during the honing process. This feature helps in achieving accurate and consistent bore dimensions.

Applications:

• High-precision automotive and aerospace parts.
• Bearings, gears, and transmission components.
• Workpieces with varying bore sizes requiring uniform machining.

Floating honing fixtures allow controlled movement of the workpiece during honing, ensuring even material removal and reducing the risk of bore distortion.

Applications:

• Long and slender bores requiring uniform honing.
• High-precision applications in medical and defence industries.
• Hydraulic cylinder components demanding concentricity.

A radial floating fixture allows movement in a radial direction, enabling the honing tool to self- align with the bore. This ensures even pressure distribution and compensates for any misalignment between the tool and the workpiece. Radial floating fixtures are ideal for applications where the bore position may vary slightly but remains within a specified tolerance.

Axial floating fixtures allow movement in the axial direction, accommodating variations in bore alignment along the tool's length. This type of floating fixture helps in achieving consistent surface finish and dimensional accuracy, especially in deep honing applications where the tool must adapt to slight misalignments in the axial direction.

A combination of radial and axial floating provides maximum flexibility, ensuring precise honing by compensating for misalignments in both directions. This dual-floating fixture is ideal for applications requiring superior bore alignment correction and enhanced accuracy, making it a preferred choice for complex honing requirements.

Rotary honing fixtures are used for rotating workpieces during the honing process, ensuring consistent contact with the honing tool and achieving uniform surface finishes.

Applications:

• Large-diameter bores in heavy machinery components.
• Automotive and diesel engine liners.
• Aerospace applications requiring uniform honing results.

Magnetic and vacuum honing fixtures are used to hold non-ferrous or delicate workpieces securely without mechanical clamping, reducing deformation and ensuring a smooth finish.

Applications:

• Thin-walled or delicate materials.
• Precision honing of aluminium and composite materials.
• Workpieces where traditional clamping may cause distortion.

Choosing the Right Honing Fixture

Selecting the appropriate honing fixture depends on factors such as:

• Workpiece size, shape, and material.
• Required bore accuracy and surface finish.
• Production volume and automation level.
• Precision and alignment requirements.

These machines are ideal for long workpieces with precise bore requirements. For example, they are widely used in the automotive industry for honing engine cylinder liners to maintain consistent bore diameters and improve fuel efficiency.

Applications:

• Used for honing long cylindrical components such as engine blocks, hydraulic cylinders, and aerospace parts.
• Ideal for both through and blind bore applications.
• Common in the automotive, aerospace, and hydraulic industries.

These are suitable for shorter components with varying bore diameters. They are commonly used for honing hydraulic and pneumatic cylinders, ensuring tight tolerances in aerospace and industrial applications.

Applications:

• Suitable for deep bores with high aspect ratios, such as hydraulic valves and gears.
• Used in industries requiring high precision, such as aerospace and oil & gas.
• Allows gravity-assisted honing, improving material removal efficiency.

Automated systems designed for high-precision, high- volume production. These machines are used in the medical sector to hone surgical instrument bores, ensuring smooth finishes for safe usage.

Application

• Used in industries requiring ultra-precise bore sizing, such as medical, aerospace, and automotive.
• Capable of achieving micron-level precision with minimal human intervention.
• Ideal for large-scale, high-volume production with strict tolerances.

These are operator-controlled machines used for low- volume or custom applications. They provide flexibility in honing intricate parts, making them ideal for repair shops and specialized manufacturing units.

Applications:

• Used for small workshops, repair centers, and low-volume production.
• Suitable for honing small parts, such as gears and bushings.
• Requires skilled labour for consistent quality.

Choosing the Right Honing Machine

• Workpiece Dimensions, Shape, and Material
• Geometrical Parameter Requirements
• Cross Hatch Pattern Requirements
• Production Quantity
• Less Change Over Time
• Batch Size and Cycle Time
